Five Axis Profile Aluminum Plate Engraving Machine
Product Description: The five-axis gantry machining center has been developed through in-depth research into the production and processing needs of the rail transit industry, evolving from the most advanced CNC machining centers in the world. The equipment's working platform can reach a length of 52 meters, capable of meeting the machining needs of most rail transit industry profiles on the market.
Processing capabilities: This machine is a CNC composite profile processing center that integrates drilling, tapping, and milling. It is capable of processing drilling, tapping, and milling for components such as side beams, base plates, and profile fittings for high-speed trains, EMUs, and subways. The equipment can achieve five-axis linkage and infinitely variable angles, completing rapid straight-line cutting of long lengths and oblique cutting at any angle; the five-axis machining center can automatically change the corresponding milling cutters according to the requirements for drilling and slotting, achieving five-axis linkage to complete straight and curved profile machining, as well as front and side drilling, etc. The equipment is equipped with a tool magazine that can store various tools and saw blades in different quantities, which are automatically selected and replaced by the program during the machining process.
Processing material: Suitable for processing various aluminum profiles, copper metals, and non-metals;
Widely applied in processing materials such as composites, aluminum profiles, fiberglass, wood substitutes, carbon fiber, PVC, wood, polyurethane, etc., suitable for intelligent processing in fields such as rail transit, aerospace, refrigerated trucks, recreational vehicles, shelters, ships, and yachts.
| Five-axis single gantry machining center parameter table |
| Number | Model | SUBACNC8035 |
| 1 | Processing route | |
| 1.1 | X-axis travel (mm) long | 800 |
| 1.2 | Y-axis travel (mm)Wide | 3500 |
| 1.3 | Z-axis travel (mm) | 1100 |
| 1.4 | A-axis travel (degrees) | ±120° |
| 1.5 | C-axis travel (degrees) | ±320° |
| 1.6 | Minimum distance from A-axis rotation center to the worktable surface (mm) | 200 |
| 2 | Workbench | |
| 2.1 | Workbench dimensions (mm) | 3500*800 |
| 2.2 | Workbench | Equipped with customized profile tooling |
| 3 | Spindle | A set. |
| 2.1 | Spindle taper specification | HSK F63 |
| 2.2 | Spindle speed | 24000rpm/min |
| 3.3 | Motor Power (KW) | Italy Oli speed 24-29kw |
| 3.4 | Torque | 19.1/23.3NM |
| 3.5 | Spindle cooling system | Oil cooling (oil-cooled machine cooling) |
| 4 | Five-axis head | A set |
| 4.1 | Servo motor | Yaskawa Servo Motors from Japan |
| 4.2 | A-axis servo power | 750w |
| 4.3 | C-axis servo power | 850w |
| 4.4 | Servo motor encoder (bus absolute type) | 20bit |
| 4.5 | Gearbox | Harmonic drive |
| 4.6 | Maximum continuous torque | 380Nm |
| 4.7 | Peak torque | 570Nm |
| 5 | Feed | |
| 3.1 | X-axis rapid traverse speed (m/min) | 35000 |
| 3.2 | Y-axis rapid traverse speed (m/min) | 35000 |
| 4.3 | Z-axis rapid traverse speed (m/min) | 15000 |
| 5.4 | A-axis rapid traverse speed (m/min) | 27 |
| 5.5 | C-axis rapid traverse speed (m/min) | 34 |
| 6 | X-axis rapid traverse speed (m/min) | |
| 6.1 | X-axis | ±0.05mm/m |
| 6.2 | Y-axis | ±0.05mm/m |
| 6.3 | Z-axis | ±0.05mm/m |
| 6.4 | A-axis | 1’ |
| 6.5 | C-axis | 1’ |
| 7 | (mm)Repeatability (mm) | |
| 7.1 | X-axis | ±0.048mm/m |
| 7.2 | Y-axis | ±0.049mm/m |
| 7.3 | Z-axis | ±0.045mm/m |
| 7.4 | A-axis | 1’ |
| 7.5 | C-axis | 1’ |
| 8 | Tool magazine | |
| 8.1 | Tool magazine configuration | Disk tool magazine |
| 8.2 | Tool magazine specifications | HSK F63 |
| 8.3 | Tool magazine capacity | 8 handles |
| 8.4 | Maximum tool diameter (mm) | 60 |
| 8.5 | Maximum tool length (mm) | 300 |
| 8.6 | Maximum tool weight (kg) | 6 |
| 9 | Overall weight | About 30 tons. |
| 10 | Total machine power | 30KW |
Product Tags:
|
|

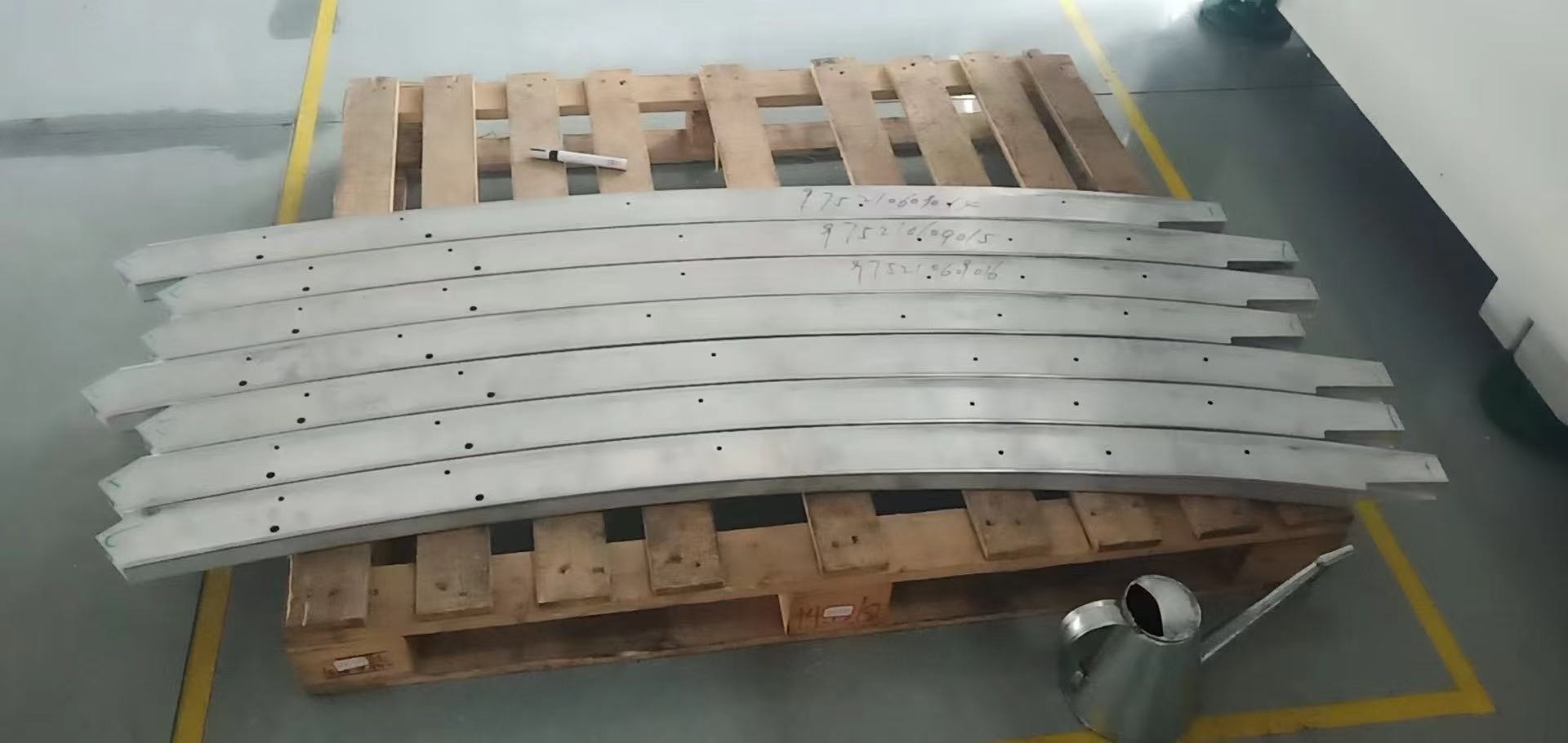

8035 Five Axis Profile Aluminum Plate Engraving Machine Images
|
